Preventing Injuries and Deaths within the Elevator Pit.
PitSafe® combines activating the pit lighting and elevator pit stop switch simultaneously virtually eliminating entry into the elevator pit without taking the elevator out of service.
Read More ↓

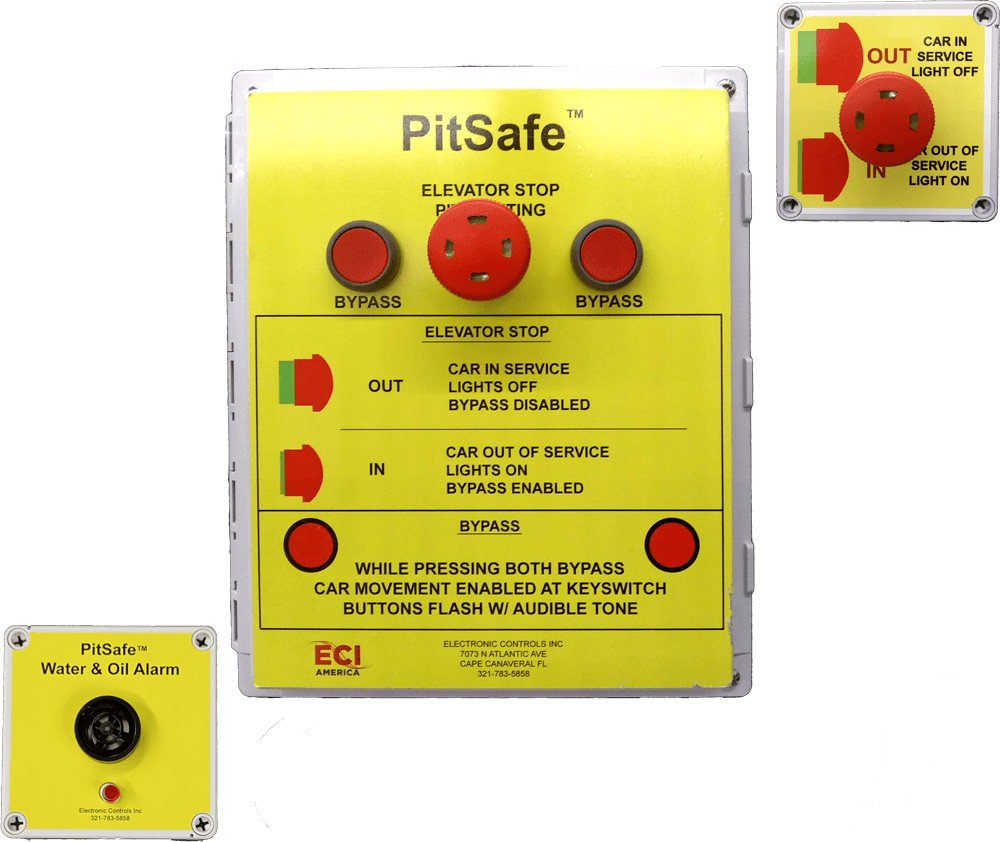

- PitSafe® simultaneously activates lighting and pit stop switch, taking the elevator out of service.
- PitSafe® eliminates unintended motion while accessing or working within the elevator pit.
- PitSafe® utilizes “fail safe” pit stop switches .
- PitSafe® allows intentional movement for service operations, putting safety in control of the at-risk mechanic in the pit. This override feature is allowed by depressing the two enable buttons simultaneously to allow movement of the car.
- Maintenance free pit lighting is provided through two 4’ high lumen LED lights for a brighter safer elevator pit and code compliance .
- Emergency lighting battery backup is provided through the LED strips for safe egress in the event of a power failure.
- Oil/Water alarm is provided through audible alarm or elevator controller interface.
- Universal installation, installs on all makes and models of elevators.
Elevator Pit
Safety Device
Pit safety is everyone’s responsibility whether you own, manage, insure, ride or work on the elevator. Everyone is affected in the event of injury or death in an elevator. Pit accidents kill both authorized and unauthorized personnel whether they have a working knowledge of an elevator or not. PitSafe® greatly reduces these types of accidents and deaths occurring in elevator pits due to activities such as retrieving lost objects or performing maintenance within the pit.
Elevator pits are notoriously dark, dangerous, and confined spaces. Entry to the pit requires looking for and turning on the pit lights prior to physically entering. However, the elevator pit stop switch may not have been activated to take the elevator out of service, allowing the elevator to unexpectedly descend and cause serious injury or even death within the pit.
The PitSafe® combines activating the pit lighting and elevator pit stop switch simultaneously virtually eliminating entry into the elevator pit without taking the elevator out of service.
Safety by design. PitSafe® utilizes fail safe switches and circuitry to insure against component failure. The design further controls movement of the elevator by others while workers are present in the pit, it also incorporates Oil & Water Alarm monitoring to further enhance flood safety and environmental cleanup.
This pit safety and maintenance station encompasses all elevator code requirements for safety and lighting devices within the pit.
